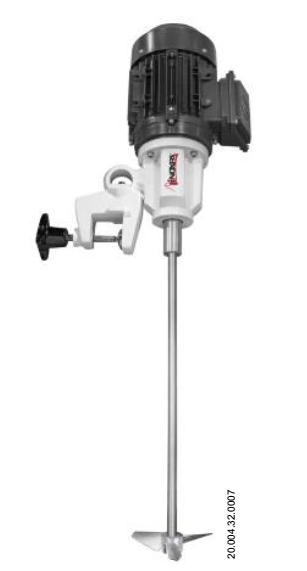

PM02-C
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
| PM02-C | Portable mounting + Motor speed+ socket shaft |
| (Gá lắp kiểu kẹp + Tốc độ mô tơ + Trục khuấy nối khớp) | |
| For small tanks from 0.05 to 0.3 m3 | |
| For non-viscous products | |
| Speed of rotation: 750, 1000, 1500 rpm | |
| (02, 05) | Motors from 0.18 to 0.37 kW. |
| Three-blades marine propeller. | |
| Propeller diameter from 80 to 140 mm. (80, 100, 130, 150) | |
| Maximum shaft length 800 mm. | |
| One or two agitation elements |

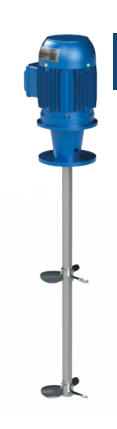

VM02-C
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
| VM02-C | Verical mounting + Motor speed+ socket shaft |
| (Kiểu bệ đứng + Tốc độ mô tơ + Trục khuấy nối khớp) | |
| For tanks from 0.2 to 3 m3. | |
| For non-viscous products. | |
| Turning speed: | |
| 750, 1000, 1500 rpm. | |
| (05, 1, 2) | Motors from 0.37 to 2.2 kW. |
| Three-blades marine propeller. | |
| Propeller diameter from 100 to 200 | |
| One or two agitation elements |

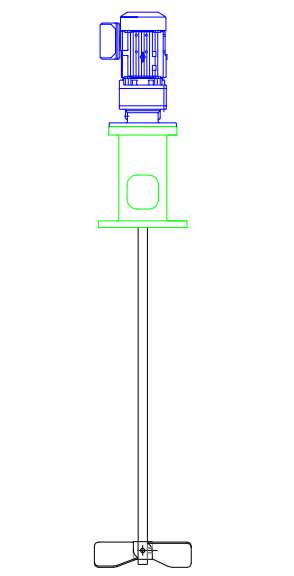

pg02-C
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
| PG02-C | Kẹp, có giảm tốc, trục nối socket |
| For small tanks from 0.3 to 2 m3. | |
| For high intensity of agitation. | |
| Speed from 50 to 180 rpm. | |
| (02, 05) | Motor from 0.18 to 0.37kW. |
| 3 blades axial turbine. | |
| Turbine diameter from 100 to 200 mm. | |
| Maximum shaft length 800 mm, insert type | |
| Reducer of parallel shafts | |
| non-viscous and medium viscous products. | |
| One or two agitation elements |
VG02-C
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
| VG02-C | Bệ đỡ, có giảm tốc, trục nối socket |
| For tanks from 0.3 to 4 m3. | |
| For high intensity of agitation. | |
| Speed from 50 to 180 rpm. | |
| (02, 05, 1) | Motor from 0.18 to 0.75 kW. |
| 3 blades axial turbine. | |
| Turbine diameter from 100 to 200 mm. | |
| Maximum shaft length 900 mm, insert type | |
| Reducer of parallel shafts | |
| non-viscous and medium viscous products. | |
| One or Two agitation elements |
VG05-F
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
| VG05-F | Bệ đứng, có giảm tốc, Trục nối bích |
| For tanks from 0.8m3 to 40 m3. | |
| For high intensity of agitation. | |
| Speed from 50 to 180 rpm. | |
| (05, 1, 2, 3, 5, 8) | Engines from 0.37 to 7.5 kW. |
| 3 blades axial turbine. | |
| Turbine diameter from 500 to 900 mm. | |
| Maximum shaft length 4000 mm. | |
| Reducer of parallel shafts | |
| non-viscous and medium viscous products. | |
| Two agitation elements |
VV02-C
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
| VV02-C | Bệ đỡ, hộp số biến tốc, trục nối socket |
| For tanks from 0.3 to 5 m3. | |
| For variety mixing application of low and morderate viscous products. | |
| Turning speed: 200 ~ 1000 rpm. | |
| (05, 1) | Motors from 0.37 to 0.75 kW. |
| Diameter of propeller from 100 to 300mm | |
| Maximum shaft length 1500 mm. |
VV1 -F
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
| VV1 -F | Bệ đỡ, hộp số biến tốc, trục nối bích |
| For tanks from 1.5 to 12 m3. | |
| For variety mixing application of low and morderate viscous products. | |
| Turning speed: 200 ~ 1000 rpm. | |
| (1, 2,3,4,5) | Motors from 0.75 to 3.7 kW. |
| Diameter of propeller from 300 to 450 mm. | |
| Maximum shaft length 2000 mm. |
